Low-Cost Industrial Stroke Counter

Overview

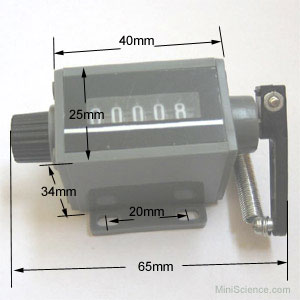

This modestly priced mechanical stroke counter provides a convenient 5-digit readout up to 99999. It may be mounted on stamping machines, printing machines, packaging machines and any other machine with a turning wheel or moving arm. A spring attached to the mechanical arm prevents excess force on the counter's arm.

The 1400-series counter features a small size with high durability and low cost. It has a knob reset that zeros the counter by rotating the knob, high visibility, and a drive shaft on the right side. It registers one count per ratchet drive of a 40°-50° reciprocating motion.

Easy base mounting and manual reset, coupled with the long-life design, make this counter ideal for machine tools, vending machines, and general industrial applications. A lever returns to its original position via an internal spring.
